For all kinds of textile tensile,tear,bursting,elongation,load,elastic,seam,slippage and stripping test of mechanical properties,and it is widely used in rubber,plastics,leather,metal,wire,paper,packaging,building materials,petrochemical,electrical,tensile,geotextile material compression,bending,bonding,peeling,tearing and bursting,creep test stress,elongation and deformation test.
|
Category
|
Serial number
|
Standard
number
|
Standard name
|
Speed
mm/min
|
Clip
distance
mm
|
Sample
size(W×L)
mm
|
|
Domestic standard
|
|
Yarn
|
1
2
|
GB/T 3916-1997
FZ/T 50007-2012
|
Determination of breaking strength and elongation at break of
single yarns
|
500
50
|
500
500
|
≥500
≥500
|
|
Clothing
|
3
4
5
|
FZ/T 80007.1-2006
FZ/T 20019-2006
FZ/T 70007-1999
|
Test method for peeling strength of adhesive linings
Test method of stitching degree of wool fabric
Test method for armpit seam strength of knitted jacket
|
100
50
200
|
50
≥75
100
|
25×150
100×175
According to
the standard
|
|
Textile
Fabric
|
6
7
8
9
10
11
12
13
14
15
16
17
18
|
GB/T 3923.1-2013
GB/T 3923.1-2013
GB/T 3923.2-2013
GB/T 3917.2-2009
GB/T 3917.3-2009
GB/T 3917.4-2009
GB/T 3917.5-2009
FZ/T 01030-1993
FZ/T 70006-2004
GB/T 13772.1-2008
GB/T 13772.2-2008
GB/T 13772.3-2008
FZ/T 01031-1993
|
Determination of breaking strength and elongation at break
Determination of breaking strength and elongation at break
Determination of breaking strength (grasping method)
Determination of tearing strength of a pair of pants (single slit)
Determination of tearing strength of trapezoid specimens
Tongue (double slit) determination of tear strength
Determination of single slit tear strength of wing specimen
Determination of the strength and expansion of the joints of
knitted and elastic woven fabrics
Test method for elastic resilience of knitted fabric
Determination of slipping of yarns at the joint of a woven
fabric with fixed slip method
Determination of yarn anti slip at the joint of woven fabric
Yarn anti slip of woven fabric joints
Determination of the strength and elongation of the joints of
knitted and elastic woven fabrics
|
20
100
50
100
100
100
100
100
100
50
50
50
300
|
100
200
100
100
25
100
100
／
100
100
100
100
75
|
50×200
50×200
100×200
50×200
75×150
150×220
100×200
≥Φ65
50×100
100×400
100×200
60×300
100×150
|
|
Geotextile
|
19
20
21
22
|
GB/T 15788-2005
GB/T 13763-2010
GB/T 14800-2010
GB/T 16989-2013
|
Wide strip tensile test of Geotextiles and their related products
Determination of tearing strength of geosynthetics by trapezoid
method
Static bursting test of geosynthetics (CBR method)
Wide strip tensile test method for joint joint of Geosynthetics
|
20
50
50
20
|
100
25
／
100+
|
200×200
75×200
≥Φ150
200×150
|
|
Zipper
|
23
|
QB/T 2171-2001
|
Metal zipper zipper comprehensive strength test project
|
300
|
／
|
／
|
|
American Standard
|
|
Textile
Fabric
|
24
26
27
28
29
30
|
ASTM D5035
ASTM D5034
ASTM D2261
ASTM D5587
ASTM D1683
ASTM D4964
|
Test method for breaking strength and elongation of textile fabrics
Test method for breaking strength and elongation of textile fabrics
The standard test method for tearing strength of fabrics by the tongue
Standard Test Method for tearing strength of fabrics with trapezium
method
Standard Test Method for fracture of weave fabric joints
Tensile and elongation test of elastic fabric
|
300
300
50/300
300
305
500
|
75
75
75
25
75
250
|
25×150
100×150
75×200
75×150
100×350
100×350
|
|
British Standard
|
|
Textile
Fabric
|
31
32
|
BS EN ISO 13934.1
BS EN ISO 13934.2
|
Determination of breaking strength and elongation at break
by strip method
Determination of breaking strength and elongation at break
by grasping the sample method
|
100
50
|
200
100
|
50×200
100×200
|

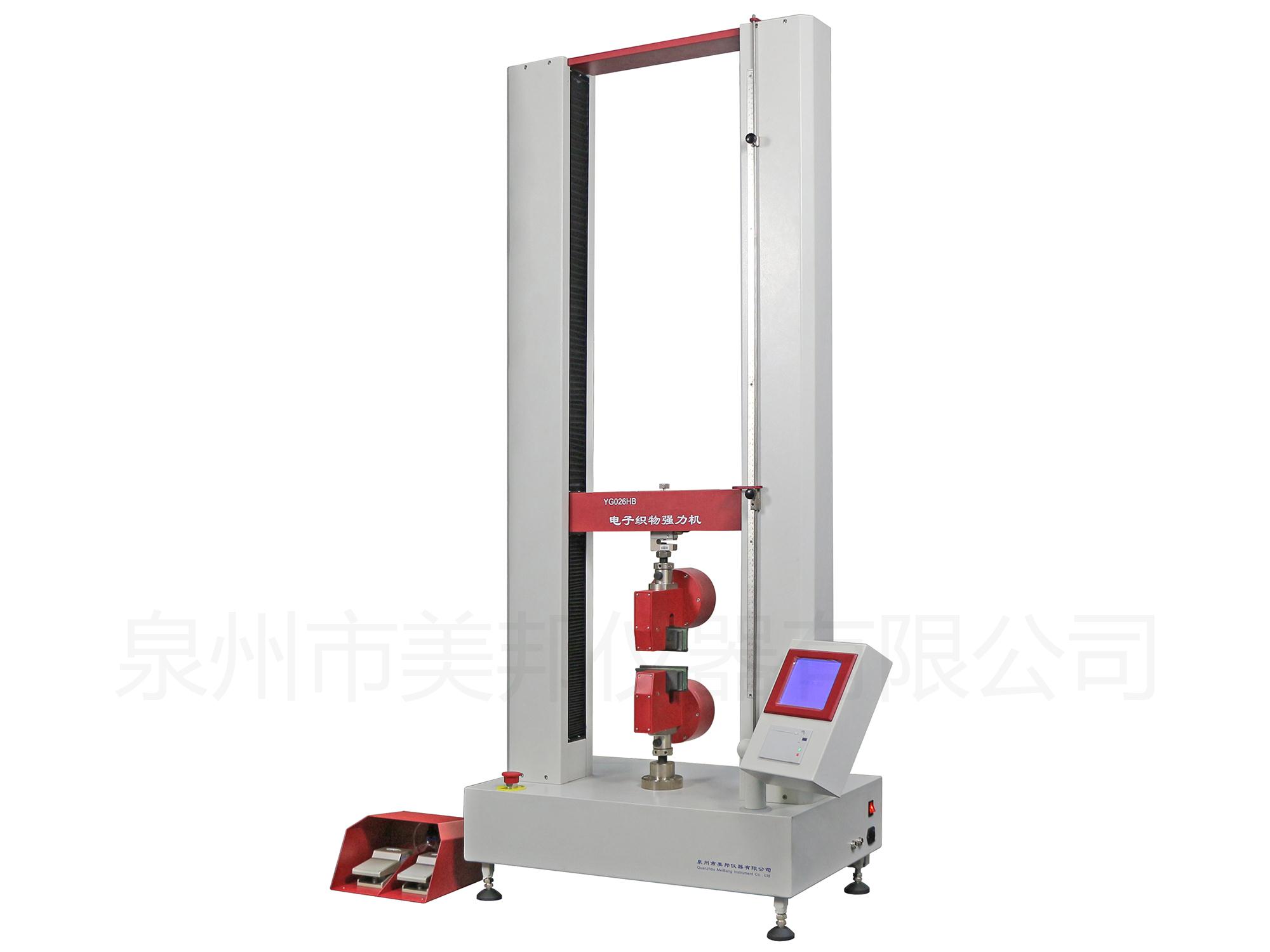

1. Equal speed extension (CRE) principle, microcomputer control, 5.7 inch touch screen control, built-in printer, support online communication.
2. Double column Longmen support structure, multi-function pneumatic clamp, easy to replace.
3. The transmission system adopts the AC servo drive system, the reducer, the synchronous belt wheel and the silk rod component. The instrument beam has a smooth movement, low noise and high elongation.
4. High precision sensor, stretching and breaking test do not need to replace the sensor.
5. According to customer needs can provide a variety of standard test functions, and can also be customized according to customer requirements.
6. The instrument adopts a variety of protective measures: the upper and lower limit protection devices for the beam, the anti collision protection device for the clamp, the software protection for displacement and load limit, the overload protection of the sensor, the software protection of the sample load, the overcurrent and over voltage protection. And the main components are monitored in real time. Therefore the use of the instrument is more safe and reliable.
7. The instrument holds the distance of the digital setting, and automatically positioning.
8. The instrument can be used on line with professional strength tester. Its software has control instruments, test curve drawing, test data analysis, preservation and management, test report formation, printing and other functions.
×
